GQ GU Barra Engine Conversion and upgrade kit

Original price was: $1,599.00.Current price is: $1,399.00.

GQ GU Patrol Barra Engine Conversion kit and engine bolt on upgrade kit

1 in stock


GQ GU Barra Conversion Kit.

all the brackets and mounts needed to install the barra engine into a GQ/GU patrol as well as engine upgrade kit.

engine upgrade kit comes with

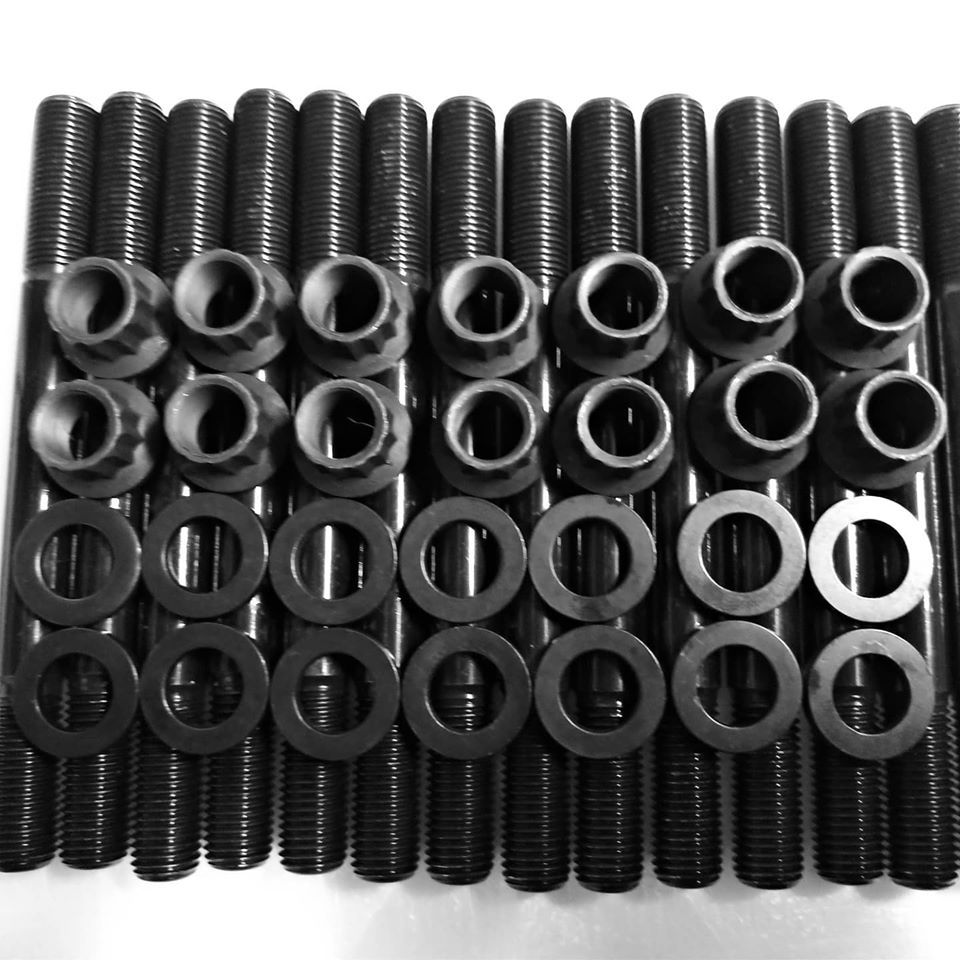

1x 12mm barra head stud kit (2000 series kit)

1x MLSR barra head gasket

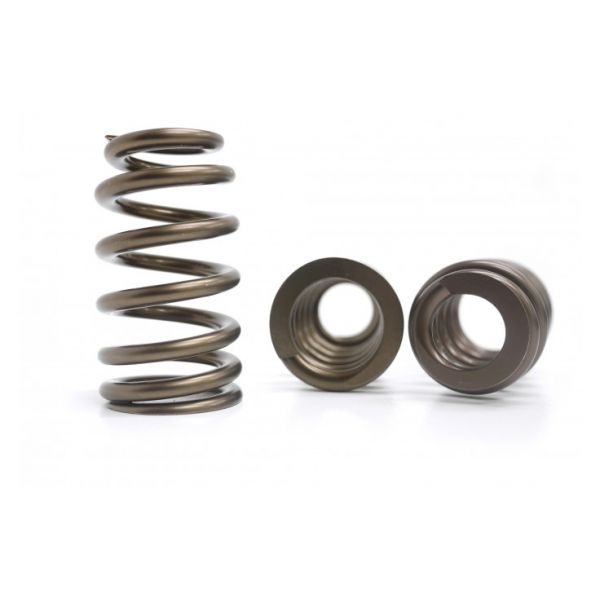

1x 95lbs valve springs

1x 4340 billet oil pump gears

1x 4340 billet oil pump backing plate.

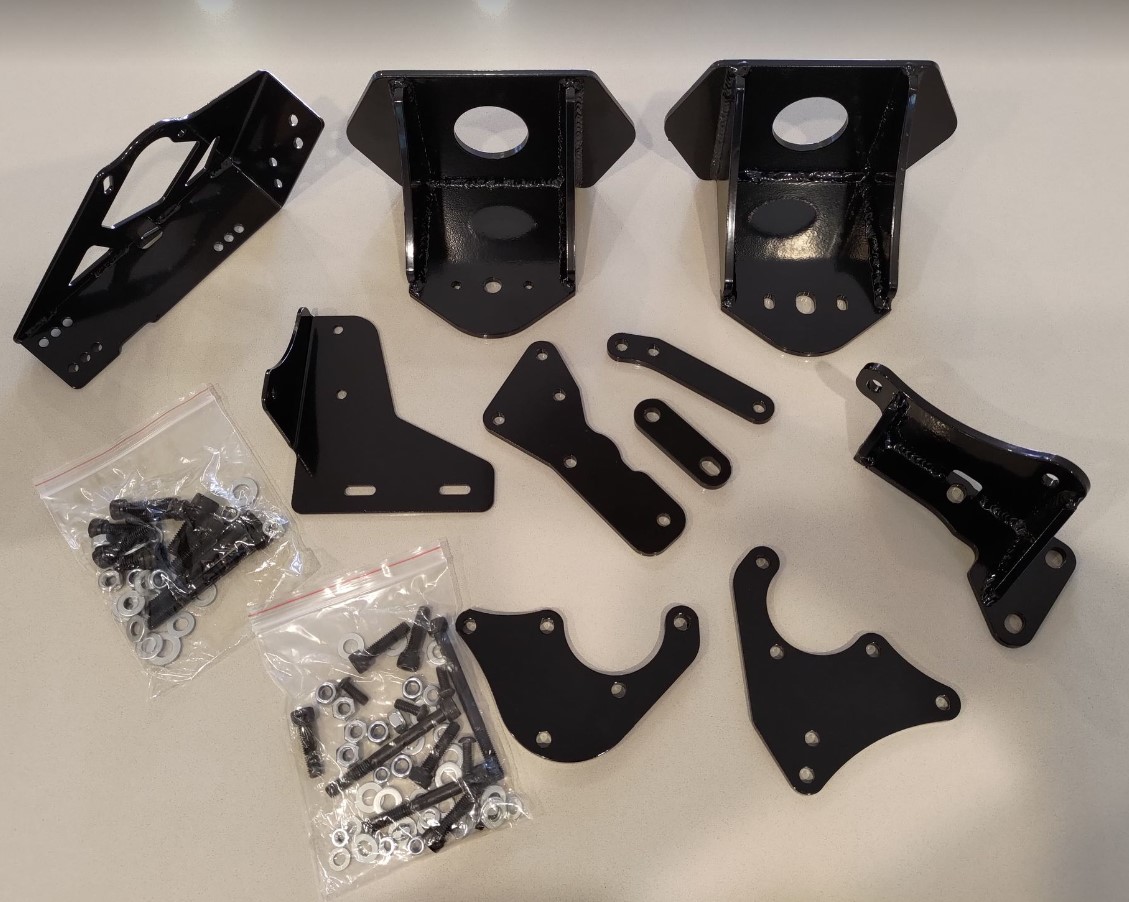

Engine install kit comes with the following

1x Pair of Engine Mount conversion brackets (Weld on chassis brackets that require, BA/BF style rubber mounts. BA/BF rubber mounts and alloy brackets required)

1x  High mount alternator Brackets.

1x Power Steering Pump bracket

1x Power Steering Pump spacer plate

1x Power Steering Pump brace/support bracket

1x Accelerator pedal adaptor to fit BA-FG drive-by-wire accelerator pedal for the conversion

1x Power Steering  Bracket  to suit the ZD30 remote reservoir

1x  all the required high-tensile bolts and lock nuts & washers for the brackets

Additional information

Weight 12 kg
Dimensions 40 × 27 × 20 cm
